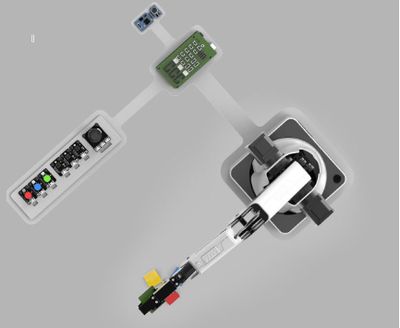

Arduino Mega 2560 control board
LED indicatoR
Joystick
Switch button
Voice and visual recognition modules
DfRduino mega2560 V3(compatible with arduino mega 2560 )
Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage (recommended): 7V-12V
Input Voltage(range): 6V-20V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16 I/O
DC Current per I/O Pin: 50 mA
DC Current for 3.3V Pin : 50 mA
Flash Memory: 256 KB of which 4KB used by bootloader
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16MHz
Pixy CUMcam5
Processor: NXP LPC4330, 204MHz, dual-core
Image Sensor: Omnivision OV9715, 1/4", 1280x800
Image Sensor: 75 degrees horizontal, 47 degrees vertical
Lens Type: standard M12 (several different types available)
Power Consumption: 140 mA
Power Input: USB Input (5V) or unregulated input (6V to 10V)
RAM: 264K bytes
Flash: 1M bytes
Available Data Outputs: UART serial, SPI, I2C, USB, digital, analog
Size: 2.1" x 1.75" x 1.4"
Digital Button Module
Keycap Color: Red, Green, Blue
Supply Voltage: 3.3V - 5V
Data type: Digital
Size: 22mm x 30mm
LED Module
Color: Red, Green, Blue
Brightness: 2500mcd to 3300 mcd Highlight
output Voltage: 3.3V-5V
Wavelength: 520nm - 530nm
Angle: 80°- 110°
Size: 30mm x 20mm
Weight: 5g
