qb SoftHand Industry

qb SoftHand industry

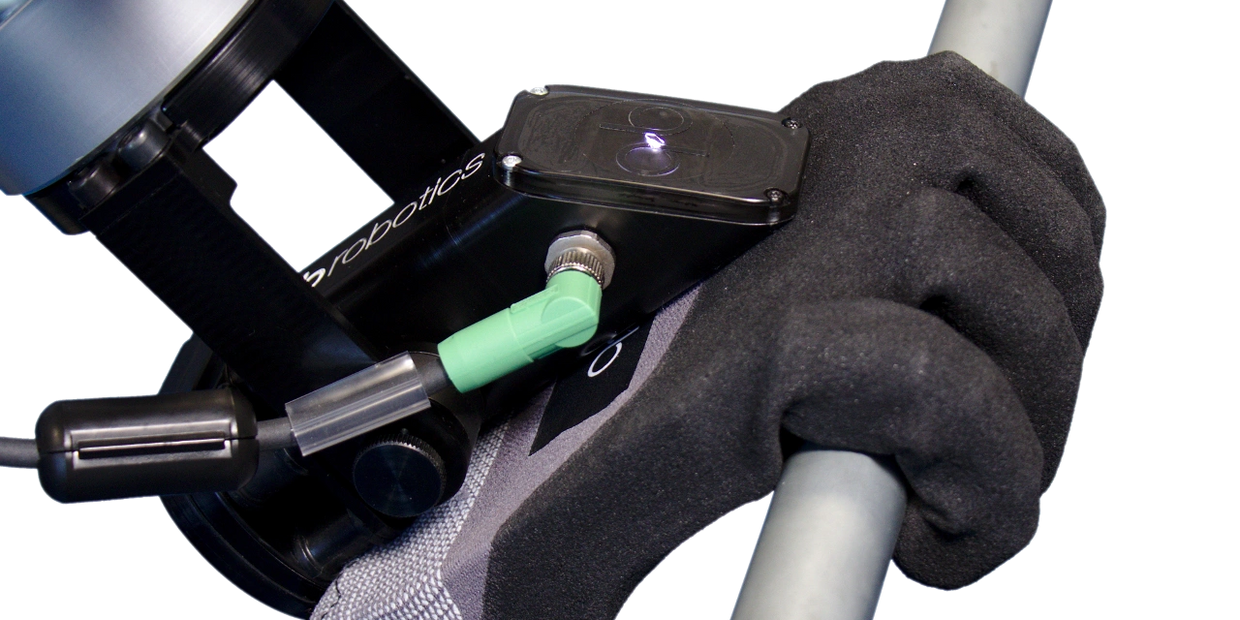

qb SoftHand Industry is a new advanced anthropomorphic robotic hand based on soft-robotics technology and designed by qbrobotics for industrial tasks, which complies to the standards and certifications of industrial and collaborative robotics and is compatible with the main collaborative robots (cobots) and traditional industrial robots on the market and it is also certified UR+ by the robotics Danish company Universal Robots and part of the Doosan Mate program by the Korean company Doosan Robotics.

qb SoftHand Industry is the first Anthropomorphic Robotic Hand designed specifically for industrial applications and tasks, which is certified as “collaborative gripper”. It is entirely collaborative from a Hardware point of view, indeed the materials used, and the flexibility of the system allow the Hand to be safe and harmless in any situation of accidental impact.
The actuation system is tendon-driven and features a single motor to open and close the 5 fingers together while replicating the first synergy of the human hand movement in a flexible and adaptable grasp.

Moreover, the new robotic hand qb SoftHand Industry offers a plug-and-play robot-hand integration, due to its ease of use and control, and can be used whenever is required to replicate the grasping movements of a human hand.




 The list of tasks that can be tackled by a system integrating the qb SoftHand Industry include:


  • Testing
  • Quality inspection
  • Pick & Place
  • Complex handling
  • Assembly
  • Machine tending
  • R&D
  • Service robotics
  • Human assistance

Wide range of applications

SPECIFICATION



  • Flexible, Adaptive & Robust
  • 5 human-like fingers
  • 19 anthropomorphic DOFs, one synergy, one motor
  • Power grasp payload: 2 kg
  • Pinch grasp payload 0,6 kg
  • Full closing time: 1,2 s
  • Plug & Play
  • Weight: 0,89 kg
  • Communication protocols: EtherCAT, UDP
  • Adjustable wrist mounting position
  • interchangeable gloves for special applications
  • Water and dust resistance: IP65
  • UR+ Certified
  • 3 International patents


NORMATIVE COMPLIANCE

  • ISO 12100
  • ISO/TS 15066
  • ISO 13849-1/-2
  • ISO 10210-1/-2
  • ISO 9409-1-50-4-M6
  • ISO/TR 20218-1
  • IEC 60529
  • IEC 61000-6-1/-6-2

COMPATIBLE ROBOT BRANDS

Do not find your Robot? Ask for information

Video

Gear Testing

qb SoftHand Industry & Doosan robot

Downloads

qb-SoftHand-Industry-datasheet (pdf)Download
qb-SoftHand-comparison-table-Research-vs-Industry (pdf)Download
